A sink that fits is not the same as a sink you like. The number that sinks most projects is not width, it is the front-to-back measurement and the height the rim ends up at once the sink is sitting on something. This guide gives you the sizes, then the four measurements that decide whether any of them will actually work in your bathroom.
Quick answer: the bathroom sink sizes that fit most vanities
Most bathroom sinks that drop into a standard vanity run 19 to 24 inches wide, 16 to 18 inches front to back, and 5 to 7 inches deep in the bowl. Across the 61 sink models we make, the median front-to-back measurement is 16.9 inches, and our bowls run shallower than the retail norm: the 50 data sheets that list an inside basin depth range from 3.2 to 5.7 inches, with a median of 3.5. Those two numbers matter more than width, because width is the one dimension a 30, 36 or 48 inch vanity almost always has to spare.
| If your vanity top is | Look for a sink about | Bowl depth | Why |
|---|---|---|---|
| 18 to 21 in deep (standard) | 16 to 17 in front to back | 5 to 6.5 in | Leaves room for the faucet deck behind the bowl and the front edge in front of it |
| 22 to 24 in deep (oversized) | 17 to 19 in front to back | 6 to 7 in | You can run a deeper bowl without crowding the faucet |
| Under 18 in deep (powder room) | 12.5 to 15 in front to back | 4.5 to 5.5 in | Shallow bowls keep the sink from projecting into a tight room |
| No vanity, wall hung | 17.7 to 20 in front to back | 4.7 to 6 in | The sink carries its own projection, so it can be deeper front to back |
| Pedestal or freestanding | 15.7 to 23.6 in wide | Total height 32.6 to 33.8 in | It replaces the vanity entirely, so height is fixed by the sink, not the cabinet |
Those ranges come from our own catalog, not from a general size chart. Every figure below is a real measurement off a sink we manufacture, and every model we sell ships with a mechanical drawing and a cut-out template so you can check the fit before anything gets cut. If you want to jump straight to shopping by size, the full modern bathroom sink range is filterable by width.
The four measurements that decide whether a sink fits
Four numbers decide the fit: cabinet interior width, vanity top front-to-back depth, finished rim height, and the drain offset behind the bowl. Get those four and almost every sink either passes or fails on paper before you buy it. Width is the one people measure first and the one that almost never causes the problem.
How do you measure a bathroom sink and the space it has to fit?
Measure the opening, not the old sink. Run a tape across the inside of the cabinet from side panel to side panel, then front to back from the inside face of the front rail to the back of the cabinet, then top of the finished floor to the top of the countertop. Write all three down before you look at a single product page.
For the sink itself, manufacturers quote width first, then front to back, then height. A sink listed as 23.6 x 16.4 x 6.1 inches is 23.6 inches side to side, 16.4 inches from the front rim to the back rim, and 6.1 inches tall from its base to the top of the rim. That third number is the overall height, not how deep the bowl is: on our UB-01, which is listed exactly that way, the inside of the basin is 4.33 inches deep. Check the data sheet for basin depth before you compare two sinks. Our own step by step guide to measuring a bathroom sink walks through the tape work if you are replacing rather than building new.
Are sink dimensions interior or exterior measurements?
Listed sink dimensions are exterior measurements, the outside of the rim, unless the page says otherwise. The bowl you actually wash in is smaller, often by 2 to 4 inches in each direction once you account for the rim and the wall thickness. This is the most expensive misreading in the category: people compare an exterior 23.6 inch figure on one page against an interior bowl figure on another and conclude one sink is far bigger than the other.
When it matters, ask for the drawing rather than the listing. Every Badeloft sink page carries a mechanical drawing that dimensions the outside and the bowl separately, so you can check the one you actually care about.
Why front-to-back depth fails more often than width
A standard vanity top is 21 inches deep, and after you subtract a backsplash and the faucet deck you are left with roughly 16 to 17 inches of usable front-to-back space. That is why 26 of the 45 mounted sinks in our range sit at 17 inches or less front to back: it is the constraint the whole category is designed around. A 19 inch deep bowl on a 21 inch top leaves about an inch of counter in front of the rim, which is not enough to set anything down and not enough to keep water off the floor.
Check the faucet before you commit. A widespread or single hole faucet needs 2 to 3 inches of deck behind the bowl for the base and the mounting nut underneath. If the sink is 18 inches front to back on a 21 inch top, that deck is gone.
How is the cut-out different from the sink size?
The cut-out is smaller than the sink for a drop-in and larger than the bowl for an undermount, and neither one equals the dimensions on the spec sheet. A drop-in rests on its rim, so the hole is cut inside the rim line. An undermount hangs below the counter, so the hole follows the inside of the bowl and the counter edge becomes the visible rim. Guessing at either produces a hole you cannot un-cut.
Two numbers go wrong at this stage more than any other. The first is faucet hole spacing: measure center to center across the outermost holes, where 4 inches means a centerset faucet and 8 inches or more means a widespread. Order the wrong one and the faucet physically cannot mount to the sink. The second is edge clearance, and stone fabricators generally want at least 3.5 inches between the counter edge and the start of a bathroom sink cut-out so the slab does not crack at the thin point.
This is the part we solved with paper rather than advice. Every Badeloft sink has a downloadable cut-out template, a third-angle mechanical drawing, and a technical data sheet on its product page, plus OBJ, SketchUp and DWG files for anyone modelling the room first. Print the template, tape it to the counter, and you are looking at the real hole before the saw comes out.
Bathroom sink sizes by mount type
Mount type sets the size range more than style does. An undermount has to fit a hole, a vessel has to sit on a surface, and a wall hung sink has to carry itself, and each of those constraints pushes the dimensions in a different direction. The table below covers all 61 models, from the technical data sheets. Bowl depth is the inside of the basin, not the height of the piece.
| How it mounts | Width, side to side | Front to back | Bowl depth, inside | What sets the rim height |
|---|---|---|---|---|
| Undermount (9 models) | 15.8 to 39.4 in | 13.9 to 16.9 in | 4.3 to 5.3 in | The counter; the bowl hangs below it |
| Undermount ramp (10 models) | 19.7 to 60 in | 16.1 to 16.5 in | 3.5 to 4.7 in at the deep end | The counter |
| Countertop (vessel) (12 models) | 15.8 to 47.2 in | 12.8 to 18.9 in | 3.2 to 5.7 in | Counter height plus 3.9 to 6.5 in |
| Wall-mounted (23 models) | 18.9 to 55.1 in | 17.7 to 20.2 in | 3.5 to 4.5 in | Wherever you mount it |
| Freestanding (7 models) | 15.7 to 23.6 in | 15.7 to 18.1 in | 5.7 in (SB-01) | The sink itself, 32.6 to 33.9 in tall |
What is a standard undermount bathroom sink size?
A standard undermount bathroom sink is about 23.6 inches wide, 16.4 inches front to back and 6.1 inches tall, with a basin about 4.3 inches deep, which is the size of our UB-01 and the size most 30 to 36 inch vanities are cut for. Undermounts hold the narrowest front-to-back band of any mount type in our range, 16.3 to 16.9 inches, because they all have to clear the same standard counter depth.
Undermounts also run some of the deepest bowls we make, about 5.3 inches on the UB-05-L and UB-05-XL. You can afford the depth because the bowl hangs into the cabinet instead of sitting on top of it. Our undermount models carry an integrated overflow, which matters in a bathroom used by children or guests who leave a tap running. If you are still deciding between mount types, we compared them directly in undermount versus drop-in sinks.

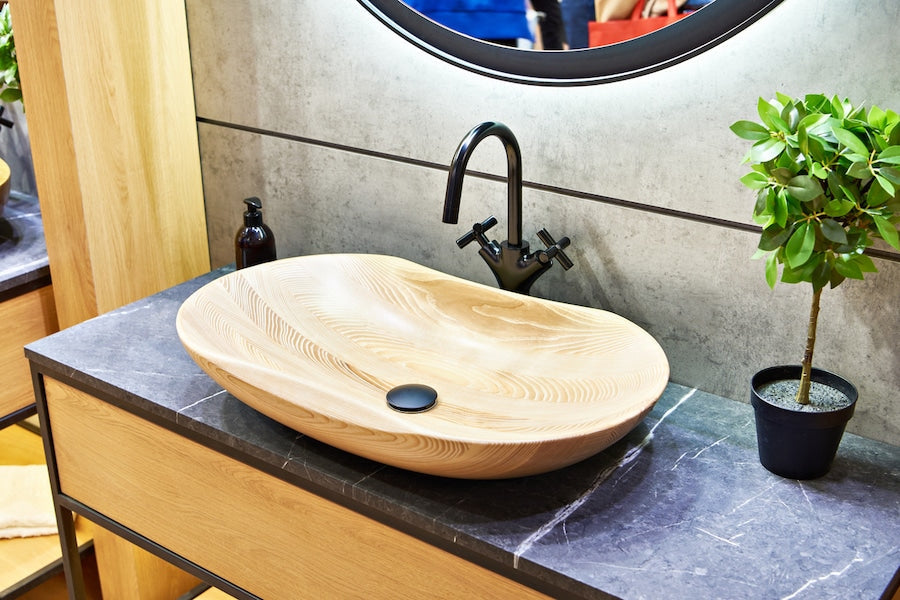

What size is an above counter or vessel sink?
Above counter sinks range from 18.8 to 47.2 inches wide and 12.5 to 18.9 inches front to back, with bowls from 4.7 to 6.2 inches deep. They are the most size-flexible option because they do not need a hole, only a drain opening, so a narrow 13.7 inch deep basin like the WB-01 will sit on a counter that could never take an undermount.
The catch is height, and it is the reason vessel sinks generate more fit complaints than any other mount. Covered in full below.
What size are wall mounted sinks, and what do they weigh?
Wall mounted sinks run 23.6 to 47.2 inches wide and 17.7 to 20.2 inches front to back, and they are the heaviest sinks we ship at 32 to 88 pounds empty. The WT-05-B is 47.2 inches wide and 88 pounds dry, and water and a leaning adult add more, so the wall behind it needs solid blocking between the studs rather than drywall anchors.
Wall hung sinks are also the deepest front to back, because the sink itself supplies the projection a vanity would otherwise provide. That extra depth is a feature in a room with no cabinet, and a hazard in a narrow one: measure the walkway in front before you choose a 20 inch deep model. We walk through the mounting in how to install a wall mounted sink.
What sizes do ramp and trough sinks come in?
Ramp sinks run from 19.7 inches up to 60 inches wide while holding a near constant 16.0 to 16.5 inches front to back. That is the point of the shape: the sloped floor drains toward the back, so the sink can get very wide without getting any deeper front to back or needing a deeper cabinet. A 60 inch UB-04-XXL fits the same counter depth as a 19.7 inch UB-04-M.
Ramp and trough sinks are the honest answer to a double vanity in a room that cannot take two bowls. One basin, one drain, two people, and no 4 inch dead strip of counter between two separate sinks. Note that our ramp models do not carry an overflow, so check that against how the bathroom will be used.
How tall is a freestanding or pedestal sink?
Freestanding sinks stand 32.6 to 33.8 inches tall overall and 15.7 to 23.6 inches wide, and they weigh 88 to 110 pounds. The height is not adjustable, because the sink is the vanity: there is no cabinet underneath to raise or lower. That fixed height is the whole appeal in a powder room, where a 110 pound stone resin column reads as furniture rather than plumbing.
Plan the rough-in before you order one. A freestanding sink hides its trap inside the pedestal, so the drain has to come out of the floor or very low on the wall, and moving it later means opening the floor.
How bowl depth changes splash and comfort
Retail buying guides put a typical bathroom basin at 5 to 8 inches deep. Ours run shallower: across the 50 models whose data sheets list it, the inside depth is 3.2 to 5.7 inches, and 45 of them are under 5 inches. Go much shallower and water bounces off the basin floor onto the counter and your clothes. Go much deeper and you stoop to rinse your face.
How deep should a bathroom sink be?
Aim for 5 to 6.5 inches for a sink adults use daily, and 4.5 to 5.5 inches for a powder room that mostly sees handwashing. Our shallowest basin is 3.2 inches (ES-WB-600) and our deepest is 5.7 inches (WB-01); most of our wall-mounted designs sit between 3.5 and 4.5 inches. A 4 inch bowl is a design choice, not a mistake, but it wants a faucet with a low, close spout to keep the splash inside the basin.
Why does a shallow sink splash, and how do you stop it?
Splash comes from the distance the water falls and the angle it hits, not from the bowl depth alone. A tall vessel-style faucet dropping water 10 inches onto a flat 4 inch basin floor will throw water over the rim no matter how well the sink is made. Lower the spout, aim the stream at the slope rather than the flat, or pick a bowl with a curved floor that redirects water sideways instead of straight back up.
This is why we publish a compatible faucet list on each sink page rather than leaving it to chance. Bowl geometry and spout height have to be chosen together, and our sink faucets are specified against the bowls we make.
Which sink size suits which room
Room type, not taste, should set the size band. A powder room and a primary suite are solving different problems, and the sink that is generous in one is in the way in the other.
What size sink works best for a powder room?
For a powder room, choose a sink 15 to 24 inches wide and no more than 15 inches front to back, with a bowl 4.5 to 5.5 inches deep. Powder rooms are short on floor area and long on circulation, so every inch the sink projects is an inch taken from the person standing in front of it. A 15.7 inch freestanding basin or a small wall hung model keeps the floor clear, and small wall mounted sinks exist precisely for this room.
Plumbing code sets the floor on how tight you can go. The International Residential Code fixture clearance rule (P2705.1) calls for at least 21 inches of clear space in front of a lavatory and at least 15 inches from the center of the sink to any side wall, partition or vanity. That 15 inch figure is the one that catches people on double vanities: a bowl set 8 inches off a side wall is not just uncomfortable to use, it is short of code.
What size sink works in a shared family bathroom?
A shared bath wants a 23 to 31 inch sink with a 6 to 7 inch bowl and an overflow. Depth earns its keep here: the bowl is holding water for hand washing, tooth brushing and the occasional rinsed-out item, and a deeper basin contains the mess. The overflow matters because this is the bathroom where a tap gets left running.
What size sink works best in a primary suite or double vanity?
In a primary suite you have two real options: two sinks at 20 to 24 inches each on a vanity of at least 60 inches, or one ramp or trough sink of 40 to 60 inches. Two bowls on a 60 inch top leaves roughly 12 inches of counter between them once you account for the faucets, which is less usable surface than most people expect. A single 48 to 60 inch ramp sink gives two people the same access and a continuous counter on both sides.
If the room is genuinely large, a 47.2 inch wall hung basin frees the floor underneath entirely and changes how big the room reads. Weight is the constraint, not width.
What size does an ADA compliant bathroom sink need to be?
There is no required ADA sink width. The standard governs mounting height and the clear space around and under the sink, not the size of the basin, and any page quoting you a required ADA sink width has misread it. Section 606.3 of the 2010 ADA Standards for lavatories and sinks requires the front of the higher of the rim or counter to sit 34 inches maximum above the finished floor, and 606.5 requires the supply and drain pipes underneath to be insulated or configured so nobody can contact them.
What rules sinks in or out is the clearance underneath. The knee and toe clearance requirements in section 306 call for 27 inches of height at the front edge, at least 11 inches of depth at 9 inches above the floor narrowing to 8 inches of depth at 27 inches, and 30 inches of width. A vanity cabinet cannot deliver that, which is why accessible lavatories are almost always wall hung with a shallow bowl and a set-back trap.
Our ADA compliant wall mount sinks run 18.8 to 55.1 inches wide with bowls of 4.7 to 6.1 inches, kept deliberately shallow so the basin does not eat into the knee space below. Confirm the mounting height at rough-in rather than at delivery: rim height is set by where the wall blocking goes, not by the sink.
Where sink sizing goes wrong
Four failures account for most sink sizing problems, and all four are visible on paper before anything ships. Each one is a mismatch between two numbers that were checked separately.
What happens when a vessel sink sits on a standard-height vanity?
A vessel sink on a 36 inch vanity puts the rim at roughly 40 to 42 inches, which is counter height for a standing adult's chest rather than their hands. Standard vanity height is 32 to 36 inches for a reason. Add a 4.7 to 6.2 inch basin on top and you have built a sink most people have to reach up into, and children cannot use at all.
The fix is to lower the cabinet, not the sink. A vessel sink wants a vanity around 30 to 32 inches so the finished rim lands near 36 inches. We cover the arithmetic in the standard height of a bathroom vanity, and the styling in bathroom vanities with vessel sinks.
What happens when the sink is too deep front to back?
You lose the faucet deck. An 18 to 19 inch front-to-back sink on a 21 inch top leaves 2 to 3 inches behind the bowl, which is exactly the space a widespread faucet base and its mounting hardware need. The sink fits the hole and the faucet does not fit the sink, and that is discovered at install.
What happens when the faucet does not clear the bowl?
Water lands on the rim instead of in the basin. Spout reach has to put the stream over the drain, not over the front edge, and a short spout on a wide vessel basin will run water down the outside of the bowl onto the counter. Check spout reach against the distance from the faucet hole to the center of the drain, not against the width of the sink.
What happens when a sink has no overflow?
It drains more slowly, and nothing caps a running tap. An overflow does two jobs: it limits the water level, and it lets air into the drain line so the bowl empties at a steady rate instead of glugging. Sinks without one drain noticeably slower, which surprises people who assume the drain is faulty.
It is a trade-off rather than a defect, and it is worth checking per model rather than per brand. In our own range the undermount models carry an integrated overflow and the ramp sinks do not, because a sloped basin holds very little standing water in the first place. Choose accordingly: a bathroom where a tap gets left running wants the overflow.
What happens when the drain and the P-trap collide?
The bowl lands on the plumbing, or the trap hits the cabinet shelf. On a typical vanity the drain outlet sits roughly 14 to 15 inches below the sink rim, so if the wall rough-in is higher than that there is no vertical room left to hang a trap. Traps have to sit level, so the usual rescues are notching the shelf or opening the wall to move the stub. A rough-in that is too low can be recovered with an extension tailpiece. One that is too high cannot.
A deep bowl in a shallow cabinet, or a drain that sits off-center from the existing rough-in, leaves the trap fouling the back of the basin or the cabinet's back panel. A 7.1 inch bowl hanging into a cabinet with a wall drain at 18 inches above the floor is a collision waiting to happen, and a wall hung sink with a hidden trap has even less tolerance. Take the rough-in height and the horizontal offset from the wall before you pick the bowl depth.
Which bathroom sink size should you buy?
Work through these in order. The first one that fails is the constraint, and the constraint picks the sink.
- Measure the top front to back. Under 18 inches, cap the sink at 15 inches front to back. 18 to 21 inches, stay at 16 to 17. Over 22 inches, you can go to 19.
- Decide the rim height. Finished rim should land at 32 to 36 inches. Subtract the bowl height from your target and that is the maximum cabinet height, which rules vessel sinks in or out immediately.
- Find the rough-in. Note the drain height above the floor and its offset from center. This sets the maximum bowl depth and rules out wall hung sinks if the drain is too high.
- Count the users. One occasional user, 4.5 to 5.5 inch bowl. Daily household use, 6 to 7 inches with an overflow.
- Check the wall or the cabinet can carry it. Anything over about 40 pounds on a wall needs blocking between studs, not anchors. Our wall hung models reach 88 pounds dry.
- Match the faucet last. Spout reach over the drain, deck space behind the bowl, and spout height low enough not to splash a shallow basin.
- Print the cut-out template. Tape it down and look at the real hole before anything is cut.
If steps one to three give you a width, browse the full sink range by that width and let the other constraints filter it down.
FAQs
What is the standard size of a bathroom sink?
The standard bathroom sink is 19 to 24 inches wide, 16 to 18 inches front to back, and 5 to 7 inches deep. Across our own 61 models the median is 16.9 inches front to back, and our bowls run 3.2 to 5.7 inches deep inside. There is no legally standard size, only the sizes that fit a standard 21 inch vanity top.
How deep is a standard bathroom sink?
Most bathroom sinks are 5 to 7 inches deep measured from the rim down to the drain. Shallower basins of 4 to 5 inches are common in powder rooms and in trough and wall hung designs. Anything under about 4 inches needs a low faucet to avoid splashing.
How do you measure a bathroom sink for replacement?
Measure the existing cut-out rather than the sink, because the sink's rim overhangs it. Take the width and the front-to-back dimension of the hole, then the distance from the back wall to the center of the drain. A replacement has to cover the existing hole and land its drain on the existing trap.
Are all bathroom sink drains the same size?
Close to it. US plumbing code sets a minimum trap size of 1.25 inches for a lavatory, and that is the figure almost every bathroom sink and pop-up drain is built around. It is a different standard from the kitchen, which is why a kitchen strainer basket will not fit a bathroom sink.
Do vessel sinks need a shorter vanity?
Yes. A vessel sink adds its full bowl height on top of the counter, so a 30 to 32 inch vanity puts the rim near the standard 36 inches. On a 36 inch vanity the same sink lands at 40 to 42 inches, which is too high for comfortable use.
What size sink fits a 24, 30 or 36 inch vanity?
Subtract 3 to 5 inches from the stated vanity width for the side panels and the front rail, then shop against that opening rather than the countertop. In practice a 24 inch vanity takes a sink of about 19 to 21 inches, a 30 inch vanity takes 23 to 25 inches, and a 36 inch vanity takes 28 to 31 inches. Keep all three at 16 to 17 inches front to back.
How much space should there be between the sink and the backsplash?
Leave 2 to 3 inches behind the bowl for a faucet base, and closer to 5 inches if the faucet has separate handles that swing backward. Any less and the handles foul the backsplash and the gap behind the sink becomes impossible to clean.
References
- U.S. Access Board. 2010 ADA Standards for Accessible Design, Chapter 6: Plumbing Elements and Facilities (Section 606, Lavatories and Sinks). https://www.access-board.gov/ada/chapter/ch06/
- U.S. Access Board. 2010 ADA Standards for Accessible Design, Chapter 3: Building Blocks (Section 306, Knee and Toe Clearance). https://www.access-board.gov/ada/chapter/ch03/
- International Code Council. 2021 International Residential Code, Section P2705.1: Fixture Installation. https://codes.iccsafe.org/content/IRC2021P2/chapter-27-plumbing-fixtures
