This is Badeloft's planning guide to building heat into a bathroom or a home wellness room: what a steam generator is actually sized against, what a sauna heater draws, what each enclosure has to be built out of, and what the two of them cost once they are installed and working.
Almost everything written about steam showers and home saunas is written to price them. That material is useful for setting a budget and close to useless for deciding whether your room can take one, because the parts that decide the answer are structural, mechanical and electrical, and the price guides do not carry them. We went and read six of the highest ranking cost guides on this topic. Between them they run to roughly 15,000 words and they contain zero code citations, zero steam generator sizing math, no ceiling slope figure, no clearance dimension, no bench dimension and no amperage. The documents that actually govern this work sit elsewhere: Section M1902 of the International Residential Code for sauna heaters, the UL 875 listing that section defers to, and the architectural guidelines that steam generator manufacturers publish for builders. Those are the expert voice in this piece.
When we say steam shower we mean a sealed, waterproofed enclosure fed by a generator that boils water into it. When we say sauna we mean a wood lined room heated by an electric heater over stones. Infrared cabins come up throughout because they are the cheap way into heat bathing, but they are a different appliance with a different install, and the sauna community will tell you, correctly, that they are not saunas.

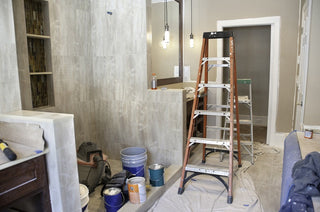

If you are mid remodel with the walls still open, you are at the only moment when both options are genuinely available to you, and the sizing and enclosure sections are where to start. If you have a finished shower and want to convert it, skip to the feasibility section first, because one specific answer there decides whether the rest of this article applies to you at all. And if you are drawing a dedicated wellness room, the sections on the sauna envelope and the air path will save you the most rework, because that is where these rooms actually fail.
By the end you will be able to put two numbers on paper that your contractor and your electrician need before either of them can quote accurately: the adjusted cubic feet your steam enclosure represents, and the circuit demand a sauna heater in your space would add. We have grouped it into four parts: what separates the two in build terms, how each one is sized, how each enclosure is built, and what they cost along with who should not use them.
Start with the difference that matters, which is not the one the comparison articles lead with.
What Actually Separates a Steam Room From a Sauna
A steam room is a sealed wet box held at low temperature and near total humidity. A sauna is a dry wood room held at high temperature with a large electrical appetite. Every practical difference between them falls out of that one sentence.
The numbers make it concrete. A correctly sized steam room runs an average temperature of about 110°F to 115°F with humidity around 98 percent, which is the target Steamist publishes in its residential architectural guidelines. A traditional sauna runs far hotter and far drier, and it has a hard legal ceiling: Section M1902.4 of the International Residential Code requires a sauna heater to carry a thermostat that limits the room to no more than 194°F, and where that thermostat is not built into the heater, its sensing element has to sit within 6 inches of the ceiling.
That gap, roughly 80 degrees, is why the two builds have almost nothing in common.
- Steam has to be sealed, sloped and waterproof. Water vapour at 98 percent humidity will find any gap in the envelope and condense inside your wall cavity. The enclosure is a vapour containment problem before it is a bathroom.
- A sauna has to be dry, ventilated and heavily powered. There is no vapour to contain, so the wall assembly is simpler. What it needs instead is a large dedicated circuit, an air path that works without a chimney, and clearances around a piece of equipment that runs at 194 degrees.
- They cannot share an enclosure. Wood lining does not tolerate steam room humidity. A combined box that does both is not a design brief, it is a warranty claim.
One point of vocabulary, because it will cost you credibility with anyone who actually builds these. There is no such thing as a dry sauna. A traditional sauna is dry until you pour water on the stones, which is the entire point of the stones. Saying steam room, traditional sauna and infrared cabin will get you further with a supplier than saying wet and dry.
Both are also a different proposition from a long hot soak, which is worth naming because a lot of people arrive at this decision wanting heat rather than specifically wanting steam. If what you actually want is twenty warm minutes, that is a question about holding a bath at the right temperature, and it is a far cheaper project.
The Question That Decides This Before Money Does
Before you compare prices, establish which of the two your room can physically support. For most houses the answer is one of them, not both, and the deciding factor is usually something you cannot change without demolition.
The forks are specific.
If your walls are open, or you are gutting the room anyway, both options are genuinely on the table and the decision is yours to make on merit. This is the only moment when that is true. A vapour barrier goes in behind the substrate, a floor drain is a rough-in decision, and a 240 volt home run is trivial while the framing is exposed and expensive once it is not.
If your shower is finished and staying that way, steam is not available to you, and no amount of budget changes that. A steam enclosure is waterproofed from behind the tile outward. Retrofitting one means taking the tile off, which is why the AI Overview on this search puts retrofits at ten to twenty thousand dollars and up while a new build custom steam shower starts at four. In that situation a sauna is often the easier project, because a prefabricated cabin is a piece of furniture with a big plug, and the only real question is your panel.
If you are building a dedicated room, a converted spare bedroom or a basement space, you have the rare luxury of choosing on preference rather than constraint, and you should build the mechanical package properly because you are only doing it once.
Picture a couple converting a 1990s primary bath. The tile is dated but sound, and the budget was going on fixtures rather than demolition. They price a steam conversion, get quoted twelve thousand dollars, and discover most of it is tear-out and re-waterproofing rather than equipment. The same twelve thousand buys a four person prefabricated sauna in the adjacent bedroom closet run, installed, with the electrical work included. Nothing about the steam quote was unfair. Their room simply was not asking to be a steam room.
How a Steam Generator Is Actually Sized
A steam generator is not sized against the size of your shower. It is sized against your shower's adjusted cubic feet, which is the raw volume multiplied by a heat loss factor for the finish, again for each exterior wall, and again for ceiling height. This calculation appears on none of the six highest ranking pages for this topic, and it is the single most common cause of an expensive steam shower that never gets hot.
Here is the published method, from Steamist's Residential Steambath Architectural Guidelines, publication 509-G.
Step one. Multiply the inside length, width and height of the enclosure. A 4 by 5 by 8 foot shower is 160 cubic feet.
Step two. Multiply by the heat loss factor for the finish. Where more than one material is used, take the one with the higher factor.
| Wall and ceiling material | Heat loss multiplier |
|---|---|
| Ceramic tile | 1.3 |
| All glass tile or glass block walls | 1.35 |
| Natural stone tile up to half an inch thick | 2.0 |
| Porcelain tile, and natural stone slab thicker than half an inch | Both carry their own factors on the same published table. We could not read those two figures cleanly from the source document, so we are not printing a number we did not retrieve. Ask your generator manufacturer for them. |
Our 160 cubic foot ceramic tile shower becomes 208.
Step three. Multiply by 1.10 for each exterior wall in the enclosure. One outside wall takes 208 to 228.
Step four. Add 15 percent for every foot of ceiling above 8 feet. Eight feet is the stated optimum and ten feet is the maximum the method covers. A window or skylight means stepping up one generator size, and the glazing has to be double pane and sealed from inside the enclosure.
Then select the generator whose maximum cubic foot range equals or exceeds your adjusted figure, not your raw one.
Notice what that arithmetic does. A ceramic tile shower gains 30 percent. The same shower in natural stone tile gains 100 percent, and with an outside wall, 120 percent. MrSteam's builder guidance reaches the same conclusion by a different route, instructing builders to add 50 percent to calculated room volume when the enclosure uses natural stone, tadelakt or polished concrete. The two manufacturers do not agree on the size of the penalty. They agree completely on its direction, and on the fact that it exists.
This is where the category's most common failure comes from. On a Houzz thread a homeowner describes a brand new steam shower, roughly 7 feet by 8.5 feet, finished in granite tile, with an exterior window. After 40 minutes it reached 90°F and shut off. Nothing was broken. The generator was selected against a room measurement rather than against the stone, the window and the outside wall, and the result was a unit doing exactly what a unit that size does in a room that hard to heat. The fix was a much larger generator, which meant a much larger circuit, which meant a conversation with the panel that should have happened at the design stage.
The forum shorthand for this, from a builder who has clearly had the argument more than once, is that sizing is a function of "cubic footage, glass, and tile material vitrosity." Vitrosity is not a word you will find on a spec sheet. It is exactly the right idea: how little your finish is willing to absorb before it starts handing heat back.
Two other things quietly change the answer and get left out of quotes. A large fixed glass panel behaves like glass block, thermally. And a second door, which turns up in his-and-hers layouts, is a second cold surface and a second seal.
How a Sauna Heater Is Sized and What It Draws
A traditional sauna heater is sized on room volume alone, with no material adjustment, and the working rule is 1 kilowatt per 50 cubic feet. That rule is a rule of thumb rather than a standard, so it is worth seeing it next to a real product.
Harvia's Kip80B is an 8 kilowatt heater rated for a room of 251 to 424 cubic feet. Run the rule against that range and you get 1 kilowatt per 31 to 53 cubic feet. So the rule of thumb sits at the generous end of one manufacturer's actual rating, which means it will usually give you a heater that is adequate rather than fast. Use it to work out what you are shopping for, then size the real unit off the real spec sheet.
The same product page carries the number that ends more sauna projects than any other. That 8 kilowatt heater runs on 240 volts, requires a minimum of 33.4 amps of overcurrent protection and an 8 AWG supply cable, and takes 44 pounds of stones. The arithmetic behind the current is simple, 8,000 watts divided by 240 volts is 33.3 amps, and you can run it for any heater: kilowatts times 1,000, divided by 240.
What you cannot do from your armchair is size the breaker. Fixed electric heating is treated as a continuous load, which is why the breaker protecting a heater is larger than the heater's running current, and the section of the National Electrical Code that governs it is Article 424. We are not going to print a figure from a code text we could not open, and neither should anyone else. Get the number from your electrician and from the heater's own installation instructions, in that order of who has the final say.
What matters more is the chain, because almost nobody draws it:
- The room volume you want gives you a kilowatt rating.
- The kilowatt rating gives you a running current at 240 volts.
- The breaker is larger than that, and it needs two adjacent slots, not one.
- Those slots have to exist in your panel, and the total has to fit inside your service.
Break that chain anywhere and the sauna stops being a purchase and becomes an electrical project. An 8 kilowatt heater pulling 33 amps continuously on a 100 amp service is the classic moment a service upgrade stops being optional, and a utility lead time on a service upgrade can outlast every other trade on the job.
If you are on a 200 amp service with spare breaker spaces, this is a day of work for an electrician and a line item in the hundreds to low thousands. If you are on a 100 amp service, stop and get a load calculation before you place a deposit on anything, because the answer determines whether your sauna costs six thousand dollars or twenty. Either way, new circuits are permitted work in most jurisdictions, so check which bathroom remodel work needs a permit in your area before the electrician starts rather than after.
Infrared cabins are the escape hatch here and the reason they sell so well. Many plug into a standard outlet, and the ones that do not are usually asking for a single 20 or 30 amp circuit rather than a 40. If the panel is the blocker and you are not attached to the traditional experience, that is a real answer rather than a consolation prize.
Say you have a 9 by 7 basement room with a 7 foot ceiling, 441 cubic feet. The rule points at 9 kilowatts, about 37 amps at 240 volts. You have a 150 amp panel with one free two pole space. That is a buildable sauna. Move the same room to a house with a 100 amp service and a full panel and the same heater has just added a subpanel and possibly a service upgrade to the scope, which is a five figure swing on an otherwise identical room.
Building the Steam Enclosure So It Survives Ten Years
Build the enclosure as a sealed vapour envelope, not as a shower that happens to get steamy. That means a vapour retarding membrane behind the substrate on every wall and the ceiling, a sloped ceiling, a door that seals at its full perimeter, and a floor drain inside the enclosure.
The specifics, from the two manufacturers' published builder guidance:
- Vapour retarder behind the substrate. Steamist's assembly detail shows a vapour retarding membrane, then cement board, then non-organic adhesive or thin set, then tile, over a mortar bed and shower pan liner, with insulation in both interior and exterior walls. MrSteam's instruction is blunter: every seam, penetration and transition has to be water and vapour tight, which includes the wall penetrations for supply lines and electrical conduit.
- Ceiling slope. Both manufacturers require one and they do not agree on the figure. MrSteam specifies at least 1 inch per foot toward a drain or the shower floor. Steamist specifies a minimum of 2 inches per foot. Follow the instructions of whoever made your generator, and if you have not chosen yet, build to the steeper of the two, because a flat ceiling pools condensate and drips it on you. Steamist also suggests sloping from the centre to keep the ceiling height loss down.
- The door seals all the way round. Not sometimes. There is a persistent builder folk belief that a steam enclosure needs gaps for air exchange, and it is wrong. Air coming in does not make the room hotter, it makes it foggier and slower, because visible fog is condensed vapour and cold incoming air condenses more of it. If you have a soffit above a standard height door, the joint where the soffit meets the enclosure opening needs its own vapour barrier.
- The generator lives outside the enclosure. It can sit up to 25 feet away, in a vanity, a closet, a basement or an insulated attic, and it must never be inside the steam room or anywhere it can freeze. A steam line longer than 10 feet has to be insulated with pipe insulation rated to at least 212°F, and the line must never form a trap: pitch it back toward the generator.
- Steam head placement. Steamist puts it 18 inches above the floor opposite the bench. MrSteam says 6 to 12 inches above the finished floor, on a wall opposite or adjacent to the bench and away from the door, and warns specifically against mid wall and ceiling placements. Both agree on the principle: low, away from the door, and not where your legs are.
- Floor drain, slope and slip resistance. A floor drain inside the enclosure for condensate runoff and cleaning, floor sloped to it, and skid resistant flooring, which matters more at 98 percent humidity than it does in an ordinary shower.
- Glazing. A window or skylight has to be double pane and sealed from inside the steam room, and it costs you a generator size.
Material choice is where the aesthetic instinct and the maintenance reality pull hardest against each other. Marble is the category's visual default and, on a Houzz thread about steam room tile, the standing complaint from an owner is that cleaning is a real problem because you cannot use strong cleaning products on it. The recommendation that thread lands on is porcelain on the walls and floor with solid granite or quartz on the horizontal surfaces, benches and niches. That is also the cheaper answer on sizing, since stone carries the heaviest heat loss multiplier on the chart.
Picture a new build where the tile setter sloped the steam ceiling 2 inches over its entire length instead of 2 inches for each foot of length. On an 8 foot ceiling run that is a sixteenth of the required pitch. The tile is beautiful, the generator is correctly sized, and every session rains on whoever is sitting under it. The remedy is framing a whole new ceiling, which means removing the tile that was just installed. That is the difference between a spec read as a total and a spec read as a rate, and it is one line on a drawing.
Building the Sauna Envelope and Getting Air Through It
A sauna is the simpler assembly and the harder mechanical problem. The envelope is a foil faced vapour barrier behind wood cladding, which is straightforward. The air path is not, and it is where indoor saunas go wrong.
Start with what the code actually says, because it is less than people assume. IRC M1902.1 requires that sauna heaters be protected from accidental contact with a guard made of a material with low thermal conductivity, such as wood, and that the guard must not have a substantial effect on heat transfer from the heater to the room. That is a requirement to build a rail, not a dimension. M1902.2 then says sauna heaters shall be installed in accordance with the manufacturer's instructions and shall comply with UL 875.
Read those two together and you get the single most useful fact about sauna clearances: there is no code clearance number. The code hands the question to the heater's listing. Anyone who quotes you a universal inches-from-the-wall figure is quoting a product they are not selling you.
What a real listing looks like is worth seeing once. The Harvia Kip80B specifies a minimum of 4.92 inches to the front and to each side where the adjacent surface is non-combustible, 7.01 inches to the floor, and a minimum room height of 6.56 feet. Those are that heater's numbers. Yours will differ, the figures change entirely where the adjacent surface is combustible, and the manual is the authority. That minimum room height is worth noting on its own, because it disqualifies a lot of basements before any other consideration does.
Then the air, which is the part the sauna world argues about most. The core technical point, made by builders on SaunaTimes and largely absent from home sauna buying guides, is that an electric heater does not create the natural draw a wood stove creates through its chimney. A wood fired sauna ventilates itself as a side effect of burning. An electric sauna has to have its ventilation designed: an intake low near the heater, an exhaust positioned to actually move air across the room rather than short circuit, and a decision about whether that exhaust goes outside or into the building. Experienced builders openly disagree about the last one. They do not disagree that it has to be deliberate.
A sauna inside a bathroom inherits the bathroom's air problem on top of its own. The bathroom exhaust that was sized for a shower is not sized for a shower plus a heat room, and if you are unsure what your current fan actually delivers, start with how bathroom ventilation is sized and ducted before you add anything to the room. One detail from a plumbing forum is worth carrying: any fan serving this kind of room wants rigid smooth walled duct, not flexible dryer style ducting, which traps condensate and eventually rots the framing around it.
Consider a finished basement sauna in a room with no exterior wall, ventilated by leaving the door open afterwards. It heats fine. What it does not do is dry out, so the lower benches stay damp between sessions and within two years the wood at the bottom of the room is discoloured and the room smells like a gym. The heater is faultless and the cladding was expensive. The room was never given a way to breathe.
Bench and Seat Geometry, the Part Nobody Prices
Bench design decides whether either room is usable, and it is completely absent from the ranking cost guides. The best any of them does is price a sauna bench at one to two hundred dollars.
The two rooms want opposite things from a seat.
In a sauna, height is the whole point. Air stratifies hard in a room running near 194 degrees at the ceiling, so the bench height is what actually sets your session temperature. That is also why the code puts the thermostat sensing element within 6 inches of the ceiling: it is measuring the hottest air in the room, not the air you are sitting in. A single low bench delivers a much cooler sauna than the heater's rating suggests, which is the usual reason a new sauna feels disappointing. Two levels, with a foot bench, gives you a range to move through rather than one fixed temperature.
In a steam room, the seat is a drainage detail. Steamist specifies a slightly sloped built-in seat so condensate runs off rather than pooling where you sit, and calls for at least half inch exterior grade plywood behind it as seat reinforcement. A steam bench is a wet, permanently loaded, cantilevered surface. It needs blocking, and the waterproofing has to be continuous behind it rather than stopping at the seat line.
One clearance point that follows from the heater rules above: the bench is a surface near the heater, and where it falls inside the listed safety distances the manual governs. This is the most common reason a sauna layout that looks fine on paper has to move once the heater arrives.
What Each One Costs Once It Is Installed
A steam shower and a home sauna land in remarkably similar territory once installed, roughly three to fifteen thousand dollars for a good residential version of either. The spread inside that band is not driven by the equipment. It is driven by how much building work the choice sets off.
These are aggregator ranges from the highest ranking cost guides, cross-read against each other. They are planning figures for a first conversation with a contractor, not quotes.
| Project | Typical installed range | What moves you inside it |
|---|---|---|
| Prefabricated steam enclosure | $2,800 to $7,100 | Sidesteps the construction question entirely. That is why it is cheaper, and it is not a compromise on the steam |
| Converting an existing shower to steam | $2,300 to $11,700 | Whether the tile is already coming off. This is the widest range on the page for exactly that reason |
| Custom built steam shower | $4,000 to $16,500 | Finish material, ceiling height, exterior walls, whether the generator forces a panel conversation |
| Prefabricated sauna, indoor or outdoor | $2,300 to $14,500 | Almost entirely the electrical work, and whether the service can take it |
| Infrared cabin | $2,300 to $8,500 | Often no new circuit at all, which is most of why it is cheaper |
| Sauna installation labour on its own | $300 to $2,500 | Prefab kit against a site built room |
Three costs sit outside those bands and get missed.
The circuit, and possibly the service. Covered above, and it is the one item that can double a sauna project on its own. The exhaust upgrade, because whichever you build, the room's existing ventilation was not sized for it, and what an upgraded exhaust fan costs to install is a small number that prevents a large one. The consumables, which nobody mentions at the point of sale. Steam generators have gaskets and seals, and owners on the forums describe replacing them every four years or so; auto drain and auto flush is the feature worth paying for because it is what keeps the unit from scaling itself shut in hard water.
If you are running these numbers as part of a bigger job rather than on their own, they sit inside the wider picture of what a primary bathroom remodel costs overall, and it is worth seeing them in that context, because a heat room is rarely the largest line on the estimate and is frequently the one that drags other trades onto the job.
There is one more cost, and it is the one the community is most vocal about. On a home building thread asking bluntly whether a steam shower is worth it, the most agreed reply came from an owner of fifteen years who had used it once, when someone had a cold. A plumber elsewhere compares the category to 1990s whirlpool tubs. We are not going to tell you they are wrong, because a room that does not get used is the most expensive outcome available here. What the same threads also show is the other side: owners of nine and ten years reporting no mould, no problems and regular use. The variable in every one of those accounts is the build, not the brand.
Who Should Not Use Either One
Heat bathing is not a neutral activity, and none of the design decisions above make it safe for everyone. Talk to your doctor before starting, particularly if anything below applies to you.
The clearest current summary sits in a 2024 review of passive heat therapies by Laukkanen and Kunutsor in Temperature. Its position on cardiovascular disease is more permissive than most people expect: current research indicates that those with stable cardiovascular conditions can safely engage in sauna bathing. But it names specific conditions that warrant caution or avoidance entirely, and those are the ones to take seriously:
- Recent myocardial infarction
- Severe aortic stenosis
- Uncontrolled hypertension
- Severe valvular disease
- Fever, skin abrasions, urticaria and certain infections
The review is unambiguous about alcohol. It states that there have been instances linking saunas to sudden deaths, largely influenced by alcohol, which magnifies the risks of hypotension, cardiac complications and accidents. That is the single most important sentence in this section, and it is about behaviour rather than equipment. It also flags that moving between heat and cold immersion produces rapid haemodynamic changes and a heightened arrhythmia risk, particularly after a recent heart attack, which is worth knowing if a plunge is part of the same plan.
On pregnancy, be clear about where the guidance comes from. That review does not address pregnancy. What does address it is the warning label on the equipment itself. Steam generators carry a printed nameplate warning that elderly persons, pregnant women, and those with heart disease, high blood pressure, diabetes or who are not in good health must not use the device unless directed by a physician, and that steam bathing should be avoided while intoxicated. That is a manufacturer's instruction rather than clinical guidance, and it is on every listed unit. Ask your obstetrician rather than the internet.
Two limits on the evidence, stated plainly because the wellness marketing around this topic does not state them. Most of the cardiovascular research on sauna bathing comes from Finnish observational cohorts, which show association rather than proof of cause, in a population where sauna use is lifelong and culturally normal. And the evidence base for steam rooms specifically is much thinner than the evidence base for saunas, so claims made about one do not automatically transfer to the other. Neither of these rooms is a treatment. If what you are after is the relaxation rather than a health outcome, that is a completely legitimate reason to build one, and it is worth reading what a hot bath does and does not do before spending five figures on a more complicated way to get warm.
Choosing Between Them
Choose on what your room can support and on which heat you will actually use twice a week. In that order.
Build the steam shower if your walls are open or coming off anyway, if you have height rather than floor area, and if you want the thing to live inside a shower footprint rather than take a room. Steam is the space efficient option and the construction intensive one.
Build the sauna if your shower is finished and staying, if you have a spare room, closet run or basement corner, and if your panel has room. A sauna is the cheaper build and the more demanding electrical job, and the community consensus among people who have owned both leans this way on durability grounds: there is simply less to go wrong in an assembly that does not have to survive constant high humidity.
Build neither yet if you cannot name where the generator or heater will physically sit, where the air goes, and what your panel has spare. Those three answers cost nothing and they determine everything else.
Four steps, in this order:
- Measure the enclosure and run the adjusted cubic feet calculation above. Do it before you fall in love with a finish, because the finish is an input to it.
- Go and read your electrical panel. Note the main breaker rating and count the spare adjacent slot pairs. This one trip decides more about your budget than any product page will.
- Take both numbers to a contractor and ask specifically about the ceiling slope, the vapour barrier, where the equipment sits, and the air path. Those four line items are where quotes diverge most.
- Decide the seating before the tile layout, not after. It is the cheapest thing to change on paper and among the most expensive to change in the room.
Whichever you land on, the heat room is one element of a bathroom, not the whole of it, and it works best when the rest of the room was designed to be somewhere you want to be. That is a separate and much less technical exercise, and it is covered in our guide to building a spa feeling into an ordinary bathroom. It is also worth asking whether the simpler version of heat gets you most of the way there, which is the question behind whether a heated freestanding bathtub is worth it.
Planning the Warm Half of a Wellness Bathroom With Badeloft
Badeloft does not make steam generators, sauna heaters or cabins, and this guide is not a route to selling you one. What we do make is the third element of a room like this, and it is the one you use every day rather than twice a week. A deep soaking tub is the most forgiving way to get and stay warm: no dedicated circuit, no vapour envelope, no clearances, no panel conversation, and it is the only one of the three you can comfortably stay in for twenty minutes.
Material matters more here than it does for a quick soak, because stone resin holds heat noticeably longer than acrylic, which is what lets a long session work without topping up halfway through.
If you are planning a heat room, plan the soak alongside it rather than after it. When you are ready to specify that piece, start with the freestanding soaking tub collection and work outward from there.
